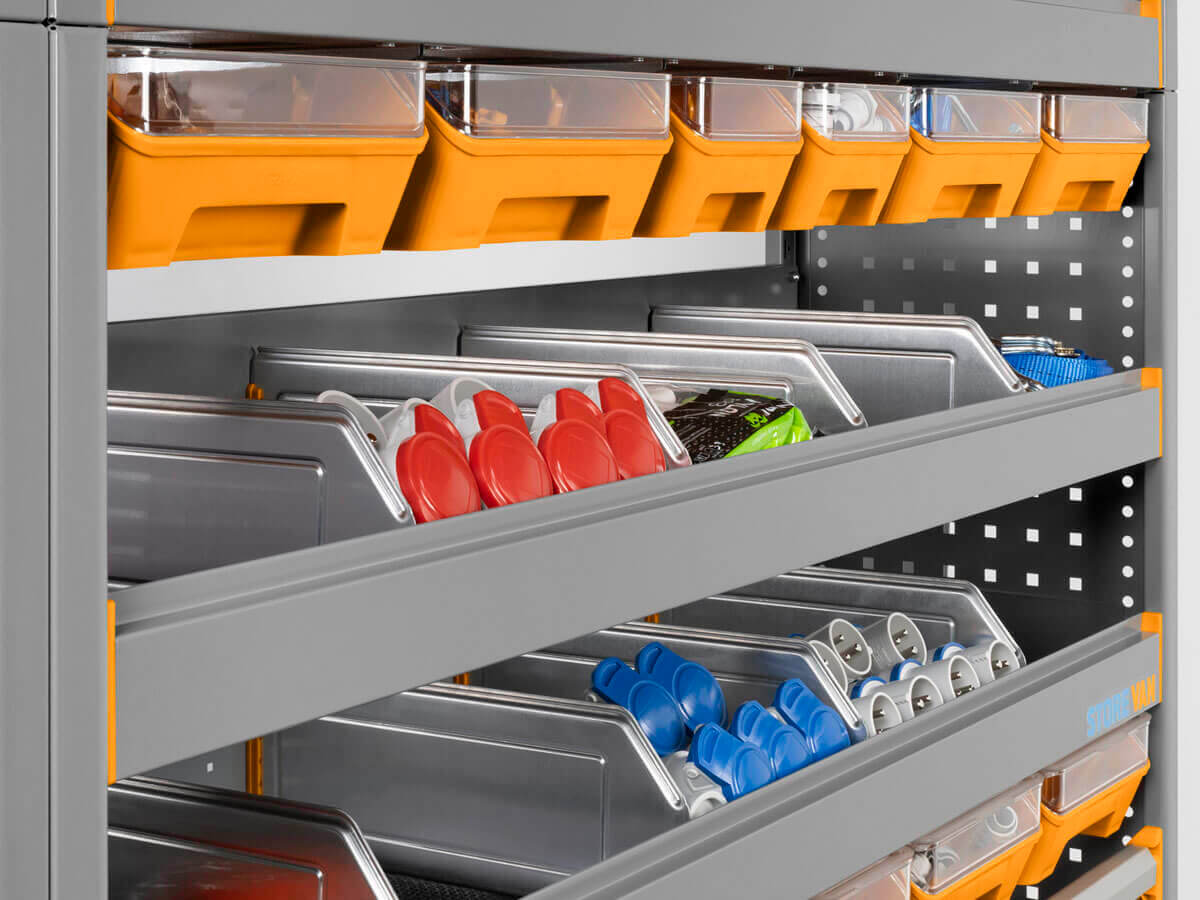

The Storage Top top trays for vans serve as the upper finishing element of a van shelving system, providing a versatile solution for organising tools, equipment and materials.

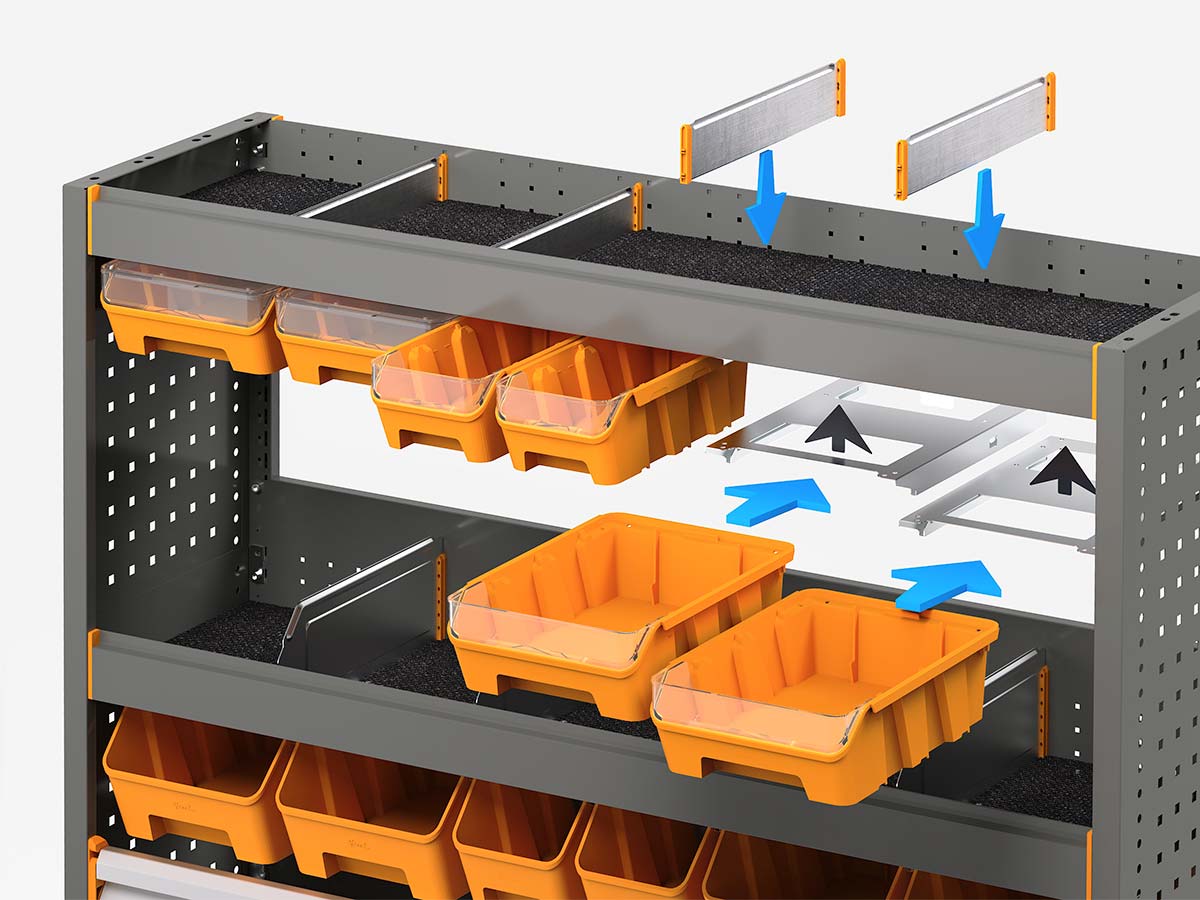

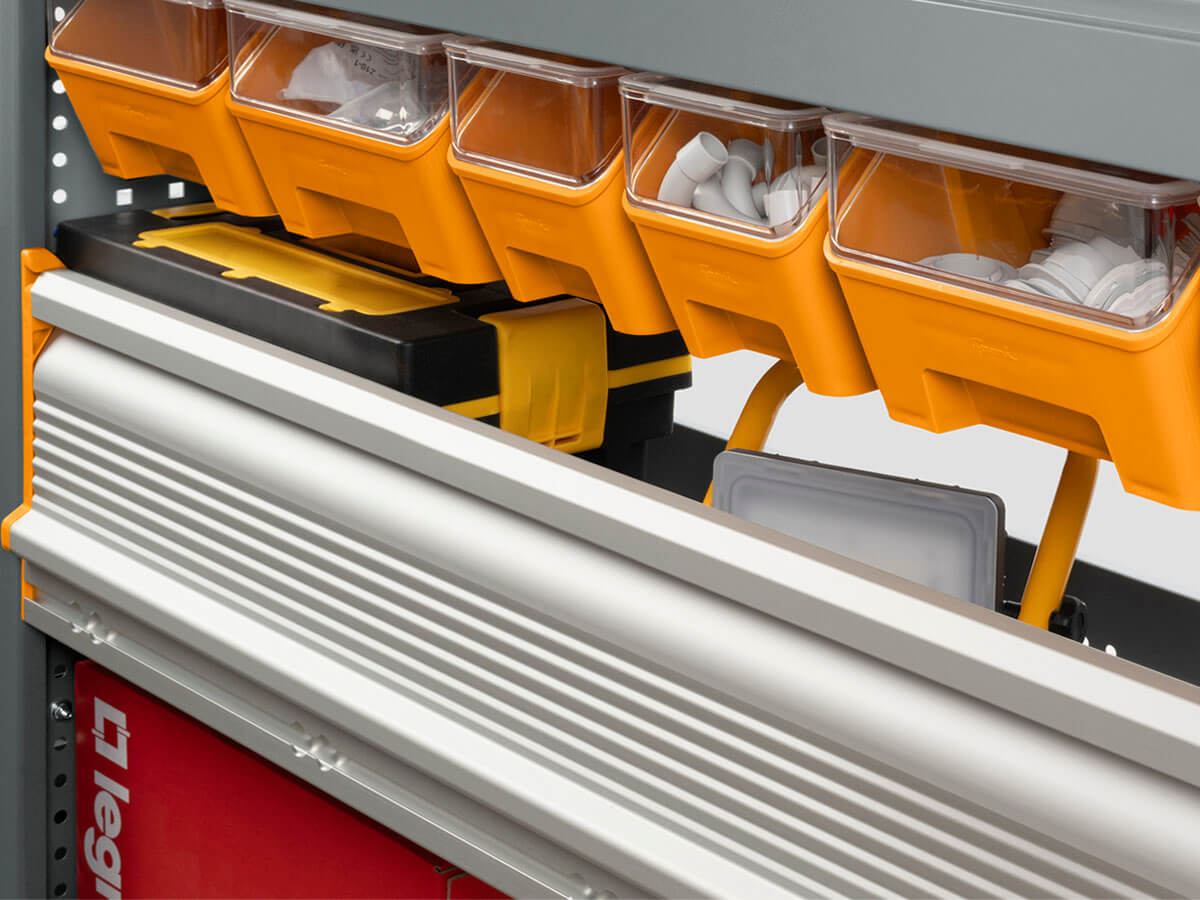

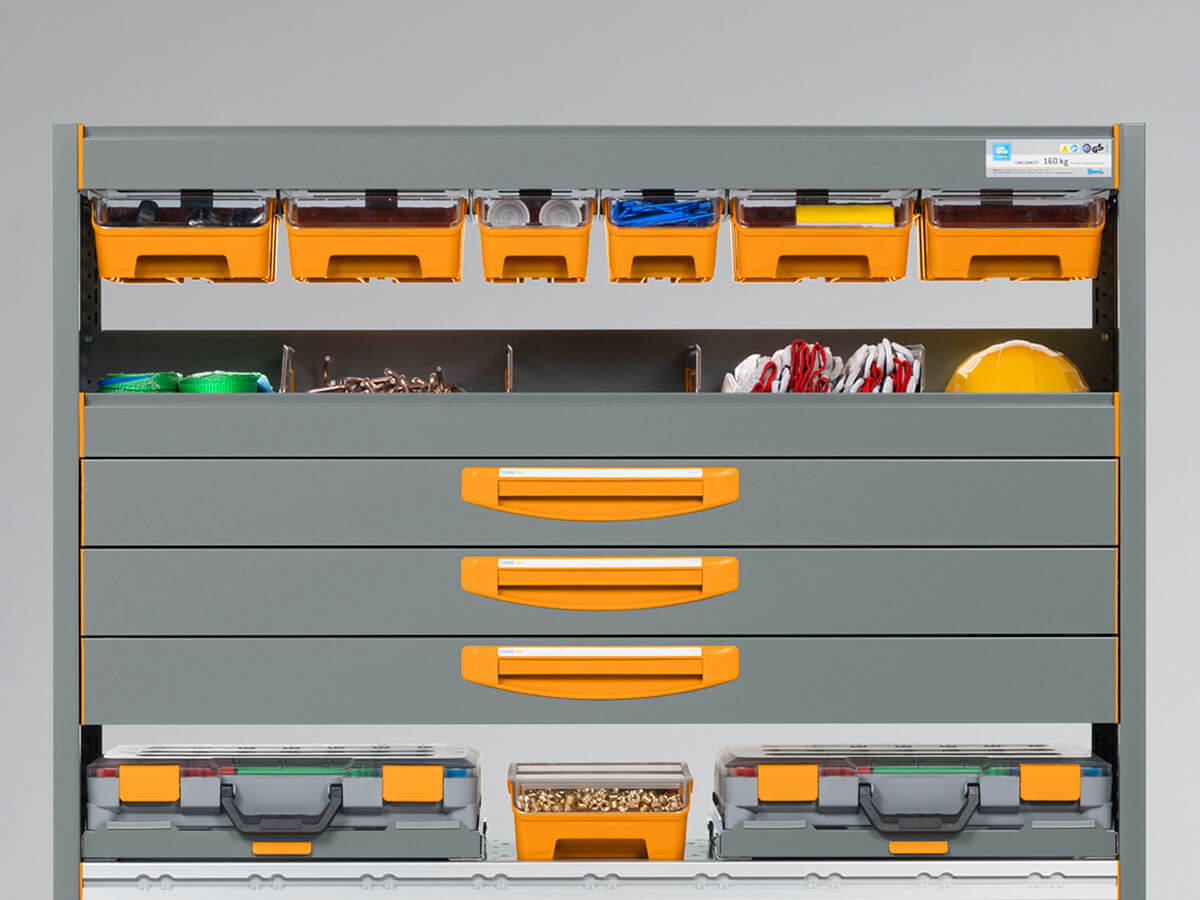

Thanks to their adjustable aluminium dividers and the possibility of integrating a wide range of accessories, Storage Top trays can be customised at any time, even after installation, adapting easily to changing operational requirements. Storage Top trays can be fitted with Door Plus or Door Small folding doors to create enclosed compartments for the storage of large tools and equipment. When dedicated storage for small parts and spare components is required, the lower section can accommodate both RK Box plastic containers and Store Box tool cases.
Storage Top trays are available in three depths and eight widths and can be installed in a wide range of van shelving configurations. Manufactured from automotive-grade galvannealed steel or aluminium, they provide excellent corrosion resistance and can accommodate items up to 1950 mm long, with a maximum load capacity of 80 kg.

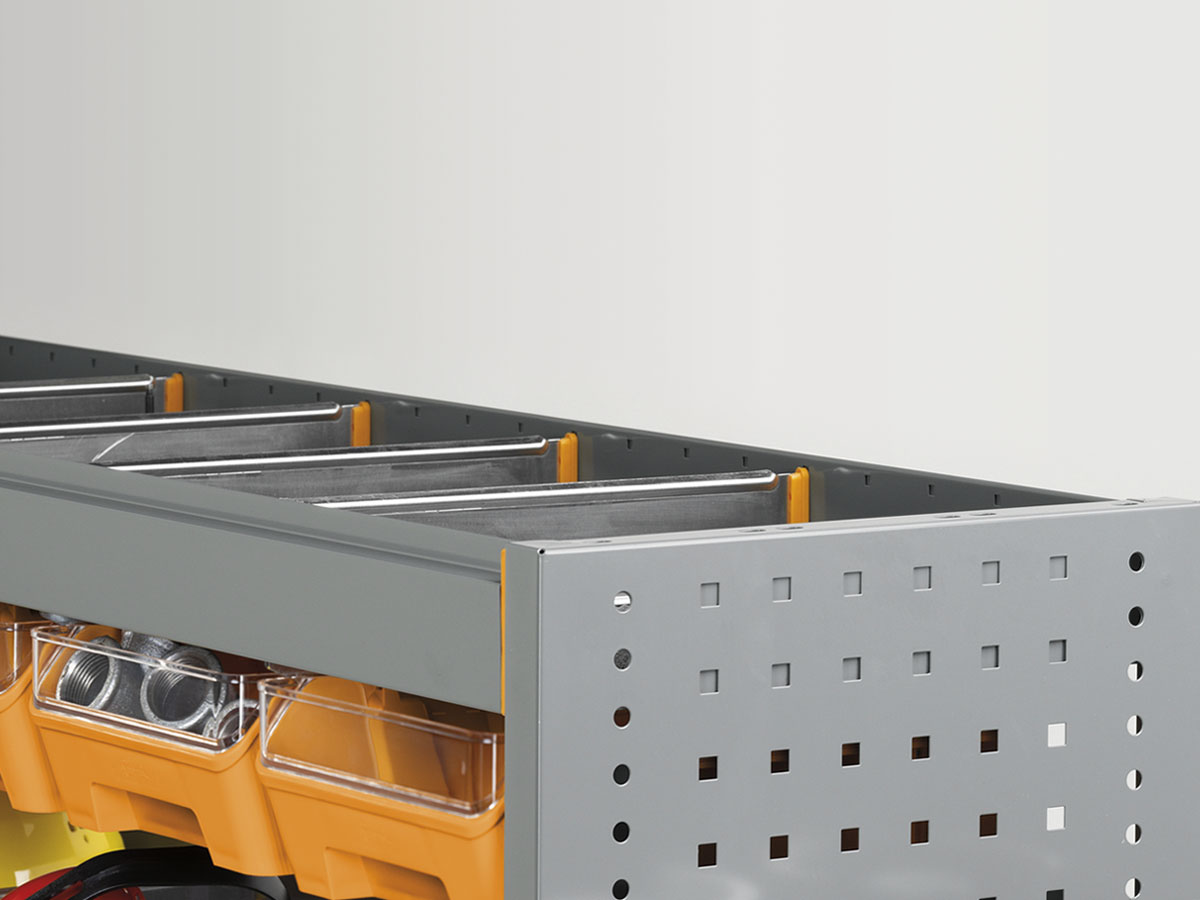

Storage Top can also be fitted with an anti-slip mat and adjustable aluminium dividers, helping to minimise load movement within the shelving system and improve safety while the vehicle is in transit.
| Width | 508 mm 717 mm 1016 mm 1225 mm 1524 mm 1733 mm 1942 mm 2032 mm |
|---|---|
| Depth | 265 mm 365 mm 445 mm |
| Front height | 75 mm |
| Rear height | 75 mm |
| Load capacity | 80 kg |
| Material | Automotive galvannealed steel / Aluminium |
| Function | Storage for small parts and components |
| Coating | Cataphoretic Coating (RAL 7000) |
